ARG Gyro Stabilisers

Gyroscopic Stabilisers (ARG) meet the high quality that is central to the DMS proposition: to guarantee the best of the best in terms of gyro stabiliser roll reduction and to ensure that everyone’s stay on board is as carefree, comfortable and safe as possible with the risk of seasickness kept to a minimum. That’s how we continue to fulfill our promise of being “Ahead in stabilisation.”

Our Gyroscopic Stabiliser Range

Gyro stabilisers are designed to reduce the rolling motion of a boat while at sea. They use highly effective gyroscopic principles to counteract this motion and keep the boat steady, whilst also offering energy efficiency and low maintenance. Learn more about the ARG roll reduction and our range below:

ARG 50T

Ideal for vessels under 10 Tonnes running on 12V DC Batteries (ARG 50T) or AC Power (ARG 65T). This powerful air-cooled unit is easily installed and combines simple control with reliable performance.

POWER SUPPLY

DC 12V(10.5~16V)
Single-phase 220-240VAC 50/60Hz

POWER CONSUMPTION

1 kW(Max) 0.7 kW(Max) (Steady-state)
1.8kW(Max) 1.4 kW(Max) (Steady-state)

ANTI ROLLING TORQUE

5000 Nm
6500 Nm

SPOOL UP TIME TO RATED RPM

30 minutes / 3200 RPM
minutes / 4200 RPM

STOP TIME TO 0 RPM

60 minutes

NOISE LEVEL IN OPERATION

70 dBA maximum
80 dBA maximum

DIMENSION (H x W x D)

Gyro: 525 x 741 x 536 mm
Motor Driver: 400 x 350 x 189 mm

WEIGHT

234 kg

* Note: Selection of correct gyroscopic unit can only be made following performance prediction from DMS and the gyro stabiliser manufacturer.

ARG 175T

The 175T is ideal for vessels of 10 - 30 Tonnes with a 220 - 240 VAC Power supply. Whilst the overall dimensions of this unit are small, it packs a powerful punch of up to 17,500 Nm of stabilising torque.

POWER SUPPLY

Single-phase 220 to 240 VAC 50/60Hz
Three-phase 200 to 240 VAC 50/60Hz

POWER CONSUMPTION

Single-phase 4.3 kW(Max) 3.5 kW(Max) (Steady-state)
Three-phase 4.0 kW(Max) 3.0 kW(Max) (Steady-state)

ANTI ROLLING TORQUE

17500 Nm

SPOOL UP TIME TO RATED RPM

35 minutes / 4600 RPM

STOP TIME TO 0 RPM

60 minutes

NOISE LEVEL IN OPERATION

80 dBA maximum

DIMENSION (H x W x D)

Gyro: 630 x 950 x 620 mm
Motor Driver: 400 x 350 x 189 mm

WEIGHT

380 kg

* Note: Selection of correct gyroscopic unit can only be made following performance prediction from DMS and the gyro stabiliser manufacturer.

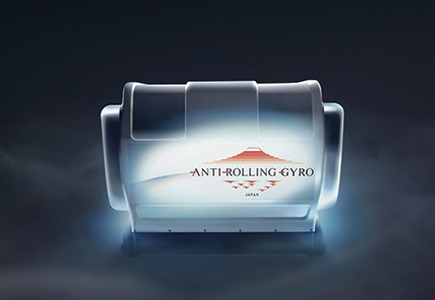

ARG 250T-1

Best suited for vessels 30-45 Tonnes running on 220-240 VAC Power. Advanced Rotary Damper technology combines with excellent performance in low and high waves to make this model a real winner.

POWER SUPPLY

Single-phase 220 to 240 VAC 50/60Hz
Three-phase 200 to 240 VAC 50/60Hz

POWER CONSUMPTION

Single-phase 4.8 kW(Max) 3.5 kW(Max) (Steady-state)
Three-phase 4.3 kW(Max) 3.0 kW(Max) (Steady-state)

ANTI ROLLING TORQUE

25000 Nm

SPOOL UP TIME TO RATED RPM

40 minutes / 3750 RPM

STOP TIME TO 0 RPM

60 minutes

NOISE LEVEL IN OPERATION

80 dBA maximum

DIMENSION (H x W x D)

Gyro: 700 x 1080 x 720 mm
Motor Driver: 400 x 350 x 189 mm

WEIGHT

700 kg

* Note: Selection of correct gyroscopic unit can only be made following performance prediction from DMS and the gyro stabiliser manufacturer.

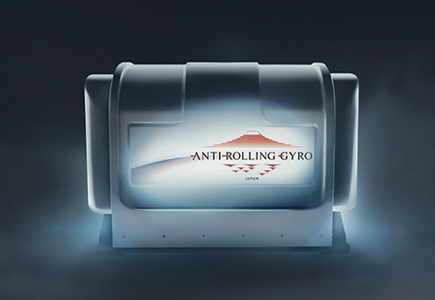

ARG 375T

The 375T is made for vessels of 45-60 Tonnes with a 220-240 VAC Power supply. Our flagship model - the pinnacle of maximum performance blending a reliable design with simple operation.

POWER SUPPLY

Single-phase 220 to 240 VAC 50/60Hz
Three-phase 200 to 240 VAC 50/60Hz

POWER CONSUMPTION

Single-phase 5.5 kW(Max) 4.5 kW(Max) (Steady-state)
Three-phase 5.2 kW(Max) 4.3 kW(Max) (Steady-state)

ANTI ROLLING TORQUE

37500 Nm

SPOOL UP TIME TO RATED RPM

45 minutes / 3250 RPM

STOP TIME TO 0 RPM

60 minutes

NOISE LEVEL IN OPERATION

80 dBA maximum

DIMENSION (H x W x D)

Gyro: 780 x 1120 x 830 mm
Motor Driver: 450 x 400 x 200 mm

WEIGHT

910 kg

* Note: Selection of correct gyroscopic unit can only be made following performance prediction from DMS and the gyro stabiliser manufacturer.

Gyro Stabiliser Technical

If you are interested in any of our ARG Roll Reduction Gyros (ARG) you can download our technical support documents with details of dimensions, powering requirements and performance below.
